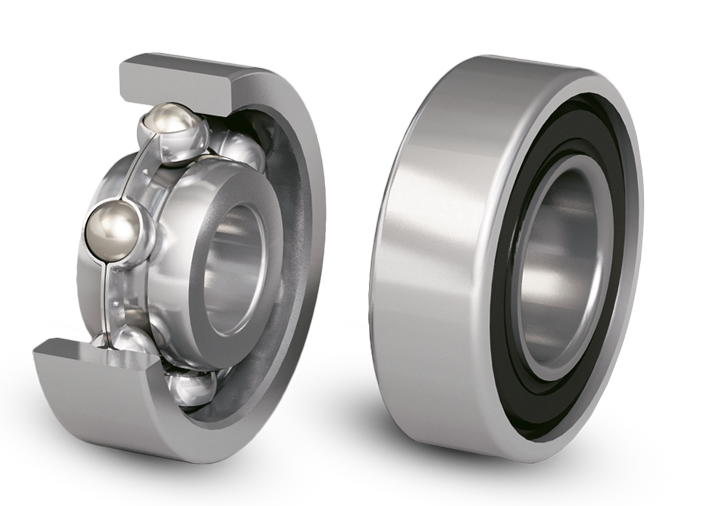

Cuscinetti Radiali Rigidi a Sfere in Acciaio Inox Serie metrica (H6000, H6200, H6300) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|

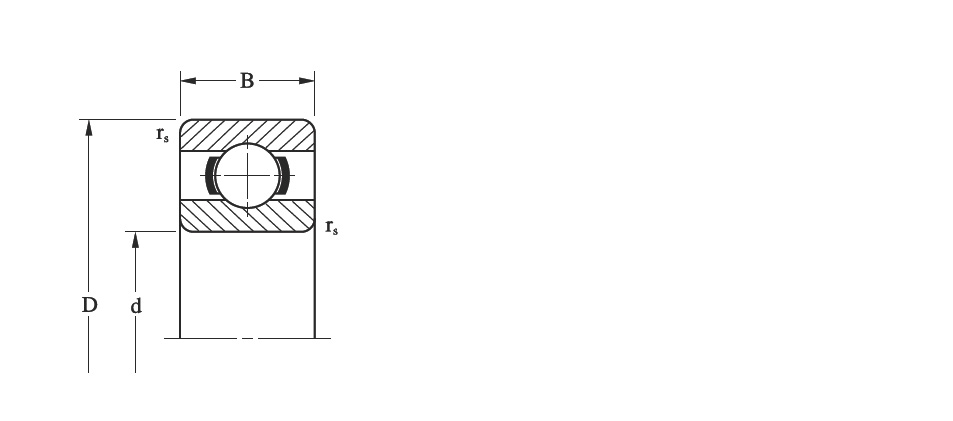

Diametro interno d (mm) | Diametro esterno D (mm) | Larghezza B (mm) | Codice | Coefficiente Carico | Velocità max ×1000rpm | |||||
Cr(N) Dinamico |
Cor(N) Statico |
grasso | olio | |||||||
10 | 26 | 8 | H6000 | 1570 | 3860 | 31 | 36 | |||
10 | 30 | 9 | H6200 | 1920 | 4340 | 24 | 29 | |||
10 | 35 | 11 | H6300 | 2750 | 6870 | 22 | 27 | |||
12 | 28 | 8 | H6001 | 1910 | 4340 | 27 | 32 | |||
12 | 32 | 10 | H6201 | 2450 | 5770 | 22 | 27 | |||
12 | 37 | 12 | H6301 | 3360 | 8240 | 20 | 25 | |||
15 | 32 | 9 | H6002 | 2270 | 4750 | 23 | 27 | |||
15 | 35 | 11 | H6202 | 3000 | 6490 | 20 | 24 | |||
15 | 42 | 13 | H6302 | 4370 | 9710 | 17 | 20 | |||
17 | 35 | 10 | H6003 | 2630 | 5090 | 21 | 25 | |||
17 | 40 | 12 | H6203 | 3850 | 8130 | 17 | 21 | |||
17 | 47 | 14 | H6303 | 5330 | 11550 | 15 | 18 | |||
20 | 42 | 12 | H6004 | 4050 | 7960 | 17 | 21 | |||
20 | 47 | 14 | H6204 | 5360 | 10910 | 15 | 17 | |||
20 | 52 | 15 | H6304 | 6310 | 13490 | 14 | 17 | |||
25 | 47 | 12 | H6005 | 4960 | 8550 | 15 | 18 | |||
25 | 52 | 15 | H6205 | 7390 | 11900 | 13 | 15 | |||
25 | 62 | 17 | H6305 | 9060 | 17490 | 11 | 13 | |||
30 | 55 | 13 | H6006 | 6610 | 11240 | 13 | 15 | |||
30 | 62 | 16 | H6206 | 9080 | 16530 | 11 | 13 | |||
30 | 72 | 19 | H6306 | 12080 | 22630 | 9.6 | 12 | |||
35 | 62 | 14 | H6007 | 8250 | 13560 | 11 | 13 | |||
35 | 72 | 17 | H6207 | 12360 | 21810 | 9.2 | 11 | |||
35 | 80 | 21 | H6307 | 15270 | 28290 | 8.5 | 10 | |||
40 | 68 | 15 | H6008 | 9220 | 14250 | 10 | 12 | |||
40 | 80 | 18 | H6208 | 14330 | 24730 | 8.3 | 10 | |||
40 | 90 | 23 | H6308 | 21500 | 34300 | 5 | 7 | |||
45 | 75 | 16 | H6009 | 9660 | 15150 | 9.2 | 11 | |||
45 | 85 | 19 | H6209 | 16300 | 27790 | 7.7 | 9.2 | |||
45 | 100 | 25 | H6309 | 28500 | 36200 | 4.5 | 6 | |||
50 | 80 | 16 | H6010 | 13260 | 18510 | 8.4 | 9.9 | |||
50 | 90 | 20 | H6210 | 18610 | 29800 | 7.1 | 8.5 | |||
50 | 110 | 27 | H6310 | 32000 | 42000 | 4 | 5 | |||
55 | 90 | 18 | H6011 | 17100 | 25000 | 5 | 7 | |||
55 | 100 | 21 | H6211 | 24500 | 36500 | 4.3 | 6.5 | |||
60 | 95 | 18 | H6012 | 19700 | 24600 | 4.5 | 5.7 | |||
60 | 110 | 22 | H6212 | 30600 | 44200 | 4 | 5 |
