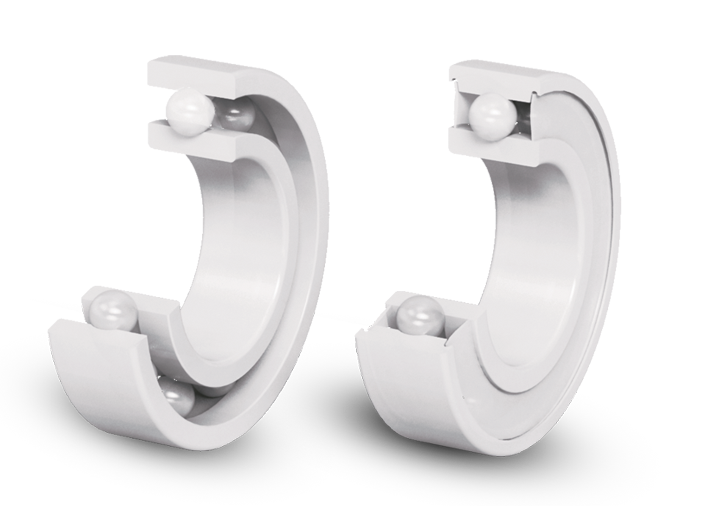

Polymerkugellager
| Polymerkugellager | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

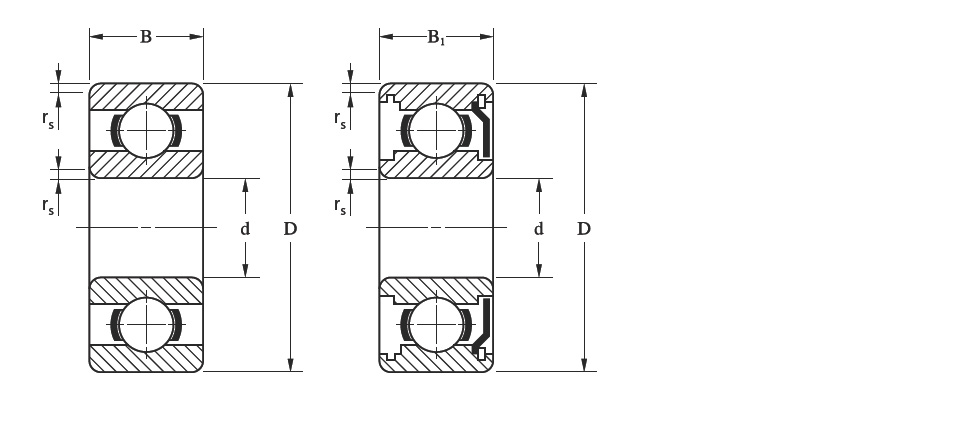

| Diametro interno d (mm) | Diametro esterno D (mm) | Larghezza B (mm) | Codice | Coefficiente Carico | Velocità max ×1000rpm | |||||
| Cr(N) Dinamico |
Cor(N) Statico |
grasso | olio | |||||||
| 6 | 19 | 6 | 626 POLYACETAL | - | 50 | - | - | |||
| 8 | 22 | 7 | 608 POLYACETAL | - | 55 | - | - | |||
| 10 | 19 | 5 | 61800 POLYACETAL | - | 50 | - | - | |||
| 10 | 22 | 6 | 61900 POLYACETAL | - | 75 | - | - | |||
| 10 | 26 | 8 | 6000 POLYACETAL | - | 90 | - | - | |||
| 10 | 30 | 9 | 6200 POLYACETAL | - | 130 | - | - | |||
| 12 | 21 | 5 | 61801 POLYACETAL | - | 63 | - | - | |||
| 12 | 24 | 6 | 61901 POLYACETAL | - | 87 | - | - | |||
| 12 | 28 | 8 | 6001 POLYACETAL | - | 110 | - | - | |||
| 12 | 32 | 10 | 6201 POLYACETAL | - | 160 | - | - | |||
| 15 | 24 | 5 | 61802 POLYACETAL | - | 75 | - | - | |||
| 15 | 28 | 7 | 61902 POLYACETAL | - | 135 | - | - | |||
| 15 | 32 | 9 | 6002 POLYACETAL | - | 130 | - | - | |||
| 15 | 35 | 11 | 6202 POLYACETAL | - | 170 | - | - | |||
| 17 | 26 | 5 | 61803 POLYACETAL | - | 93 | - | - | |||
| 17 | 30 | 7 | 61903 POLYACETAL | - | 153 | - | - | |||
| 17 | 35 | 10 | 6003 POLYACETAL | - | 170 | - | - | |||
| 17 | 40 | 12 | 6203 POLYACETAL | - | 220 | - | - | |||
| 20 | 32 | 7 | 61804 POLYACETAL | - | 147 | - | - | |||
| 20 | 37 | 9 | 61904 POLYACETAL | - | 222 | - | - | |||
| 20 | 42 | 12 | 6004 POLYACETAL | - | 200 | - | - | |||
| 20 | 47 | 14 | 6204 POLYACETAL | - | 270 | - | - | |||
| 25 | 37 | 7 | 61805 POLYACETAL | - | 177 | - | - | |||
| 25 | 42 | 9 | 61905 POLYACETAL | - | 273 | - | - | |||
| 25 | 47 | 12 | 6005 POLYACETAL | - | 240 | - | - | |||
| 25 | 52 | 15 | 6205 POLYACETAL | - | 320 | - | - | |||
| 30 | 42 | 7 | 61806 POLYACETAL | - | 204 | - | - | |||
| 30 | 47 | 9 | 61906 POLYACETAL | - | 300 | - | - | |||
| 30 | 55 | 13 | 6006 POLYACETAL | - | 280 | - | - | |||
| 30 | 62 | 16 | 6206 POLYACETAL | - | 360 | - | - | |||
